Merging, cropping, and filtering datasets

This guide explains how to merge multiple datasets and their internal tiles, crop a region for analysis, and apply classification-based filters before exporting to a file.

Merging

Point cloud datasets often consist of multiple tiles. Traditionally, these tiles must be merged manually in separate software. In LumiDB, dataset and tile boundaries are abstracted, allowing you to view them as a unified dataset directly in the browser.

Merging happens automatically. All datasets selected from the Datasets menu are combined for visualization, including their internal tiles.

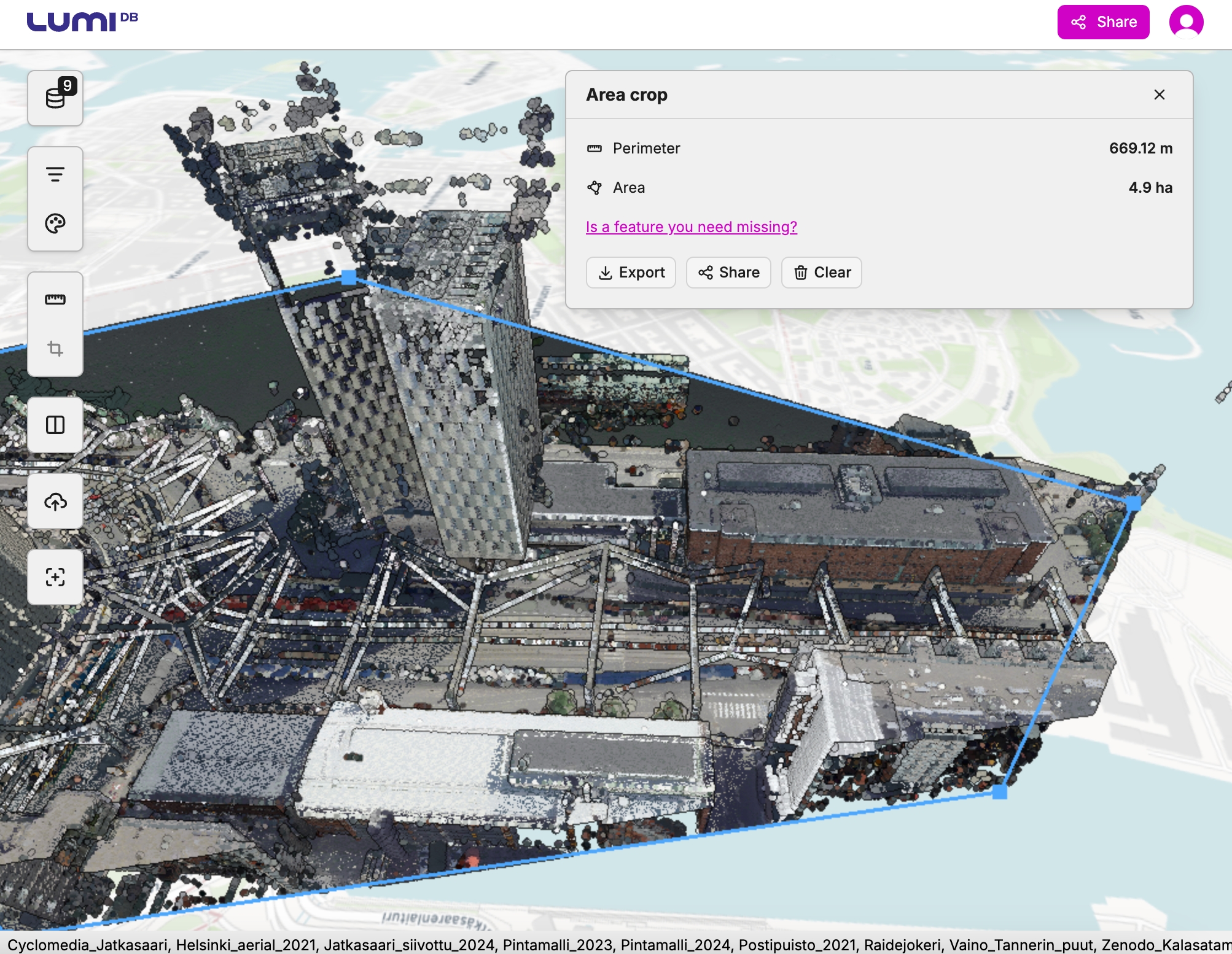

Cropping

1. Navigate to the area of interest on the map.

2. Use the Crop tool to draw a polygon around the area.

3. Adjust the polygon by dragging its corners.

4. The cropped area is previewed immediately in the visualization view.

Remove cropping

1. Click any corner of the cropped area to open the Area crop panel.

2. Click Clear to remove the crop.

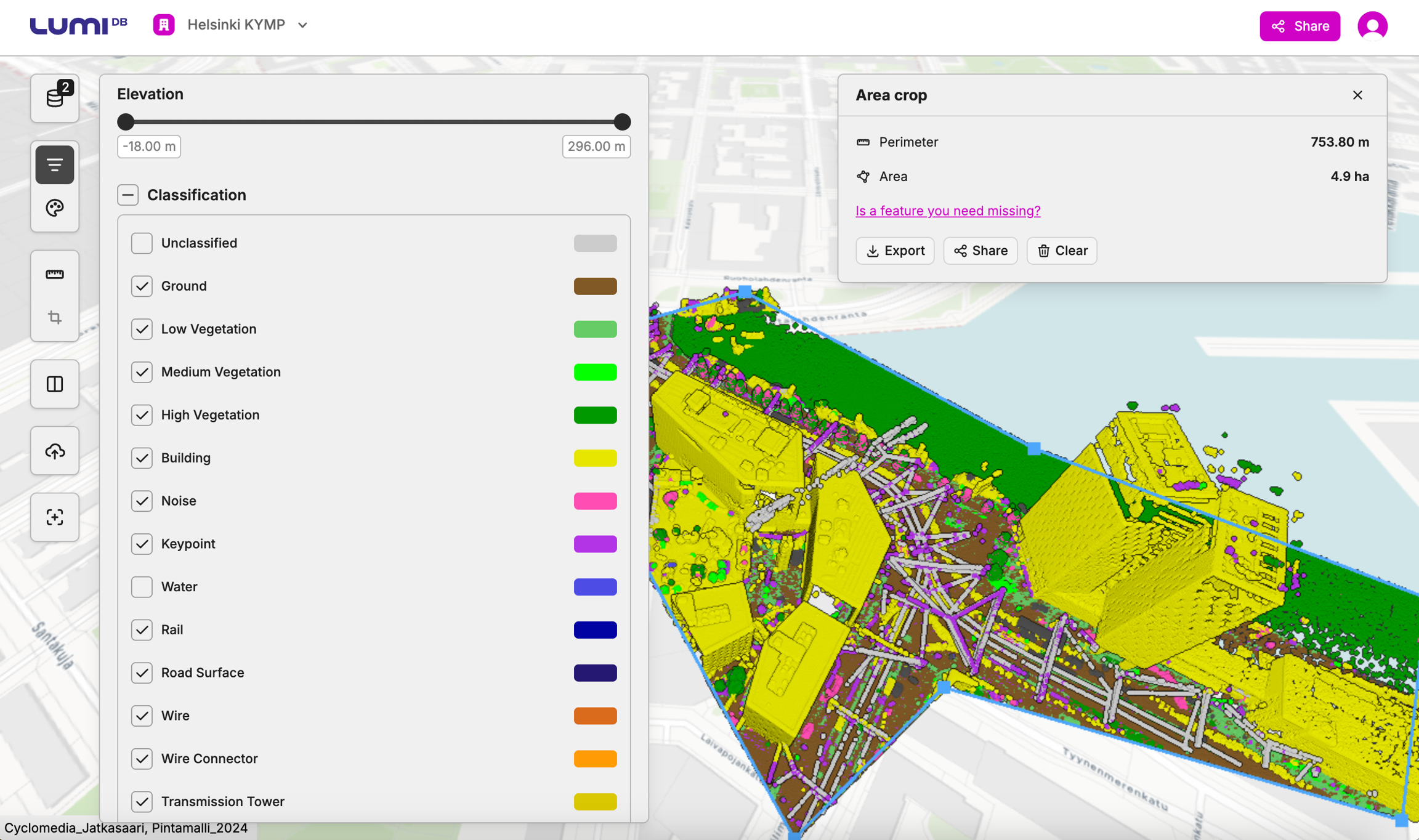

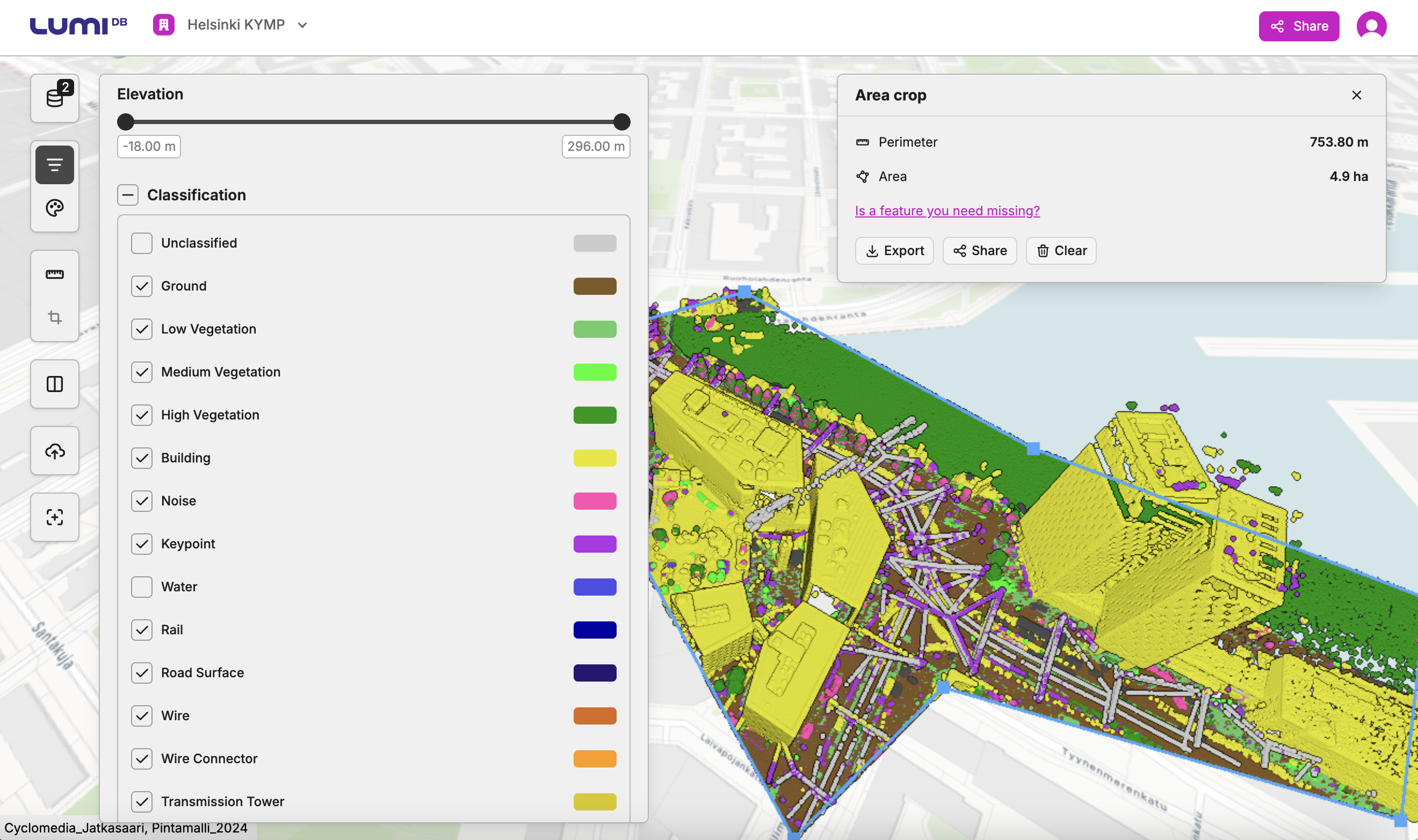

Filtering

1. Open the Filters menu. The colors update to reflect classification data.

2. Use classification filters to refine the visible data, for example, to hide water or unclassified points.

Export to file

Once cropping and filtering are complete:

1. Open the Export menu from the Area crop panel.

2. Export the cropped and filtered dataset in standard formats such as LAZ or E57, or download the original tile files separately.

3. You can also share the dataset as a link with colleagues or as 3D Tiles for use in supported applications.
