Cesium 3D Tileset export

This guide explains how to stream point cloud data from LumiDB into any software that supports Cesium 3D Tileset streaming.

Get 3D Tileset URL for full datasets

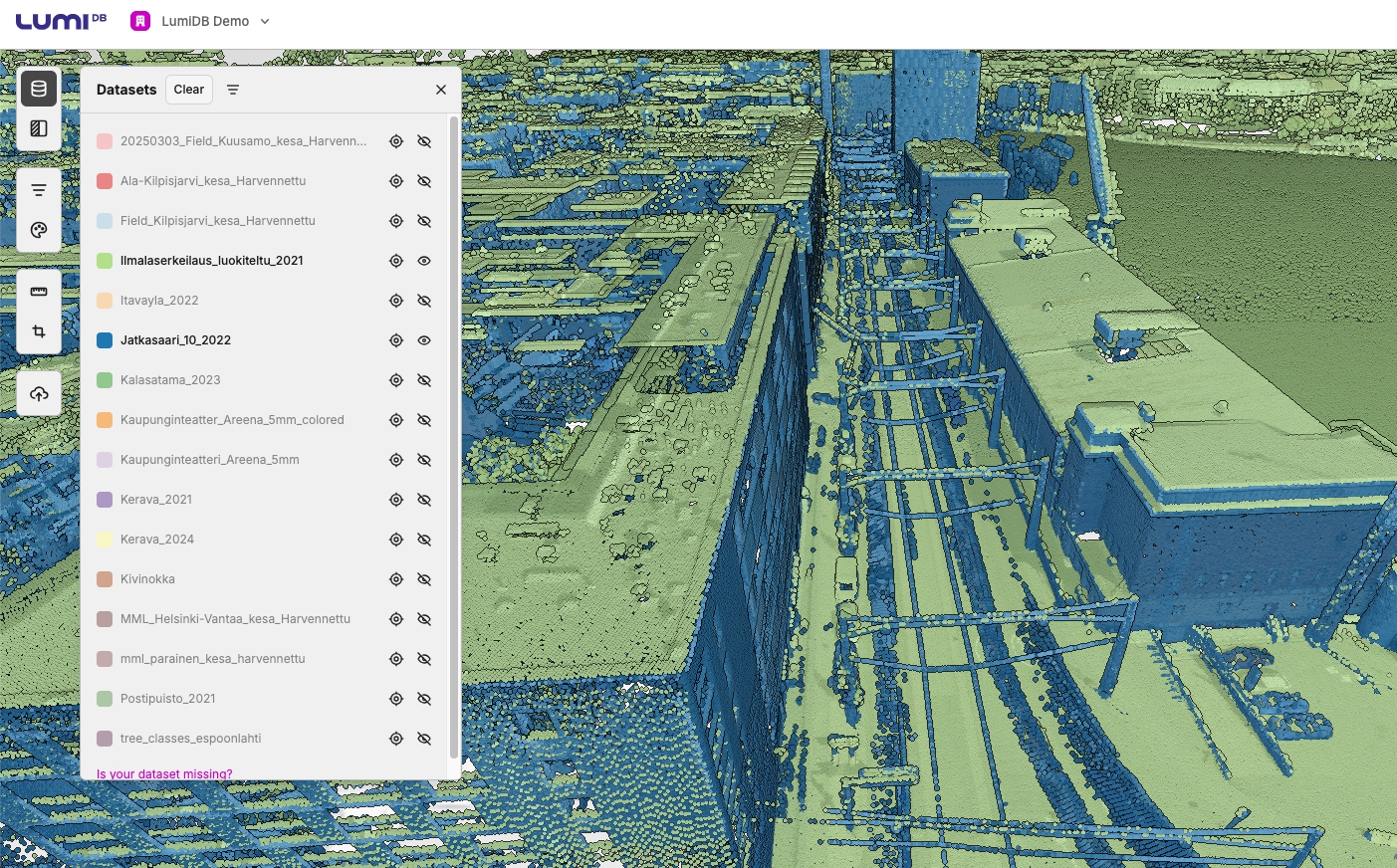

1. In the Datasets menu, select the datasets you want to export

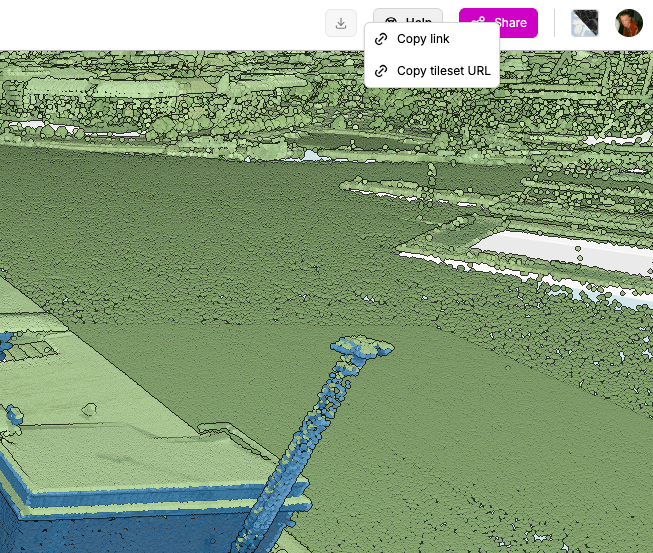

1. From the top menu, click Share and then Copy tileset URL. This copies the tileset link to your clipboard.

2. Save the link for later use or paste it directly into your target software by following instructions in Streaming in external software.

Get 3D Tileset URL for filtered or cropped datasets

1. Follow the instructions in Merging, cropping, and filtering datasets.

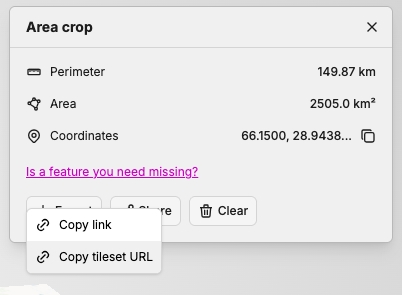

1. In the Area crop panel, click Share and then Copy tileset URL. The link will be copied to your clipboard for use in external tools. Follow instructions in Streaming in external software.

Streaming in external software

LumiDB supports point cloud streaming into any application that supports Cesium 3D Tilesets. To enable this, you'll need a personal API key for authentication. Contact [email protected] to request your key.

This example uses the 6DPlanner software.

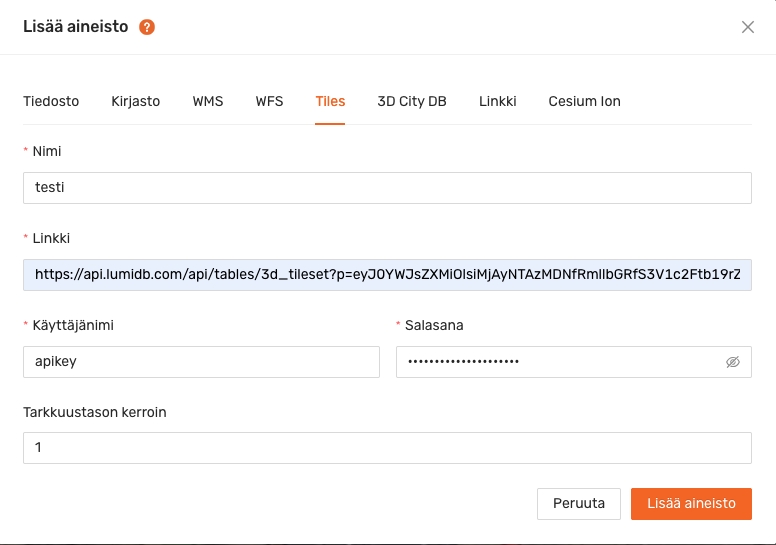

1. In 6DPlanner, open Data Tree → Add datasets.

2. Select the Tiles option.

1. Required fields:

   1. Linkki: Paste the 3D Tileset URL copied earlier

   2. Käyttäjänimi: Use apikey

   3. Salasana: Enter your personal API key

2. Click Add dataset to start streaming.

Note: In 6DPlanner, the Name and Resolution multiplier fields are specific to the application. Refer to 6DPlanner documentation for recommended values.
