LumiDB in brief

LumiDB lets you view, crop, filter, and export massive point cloud datasets directly in the browser. This article introduces the core features.

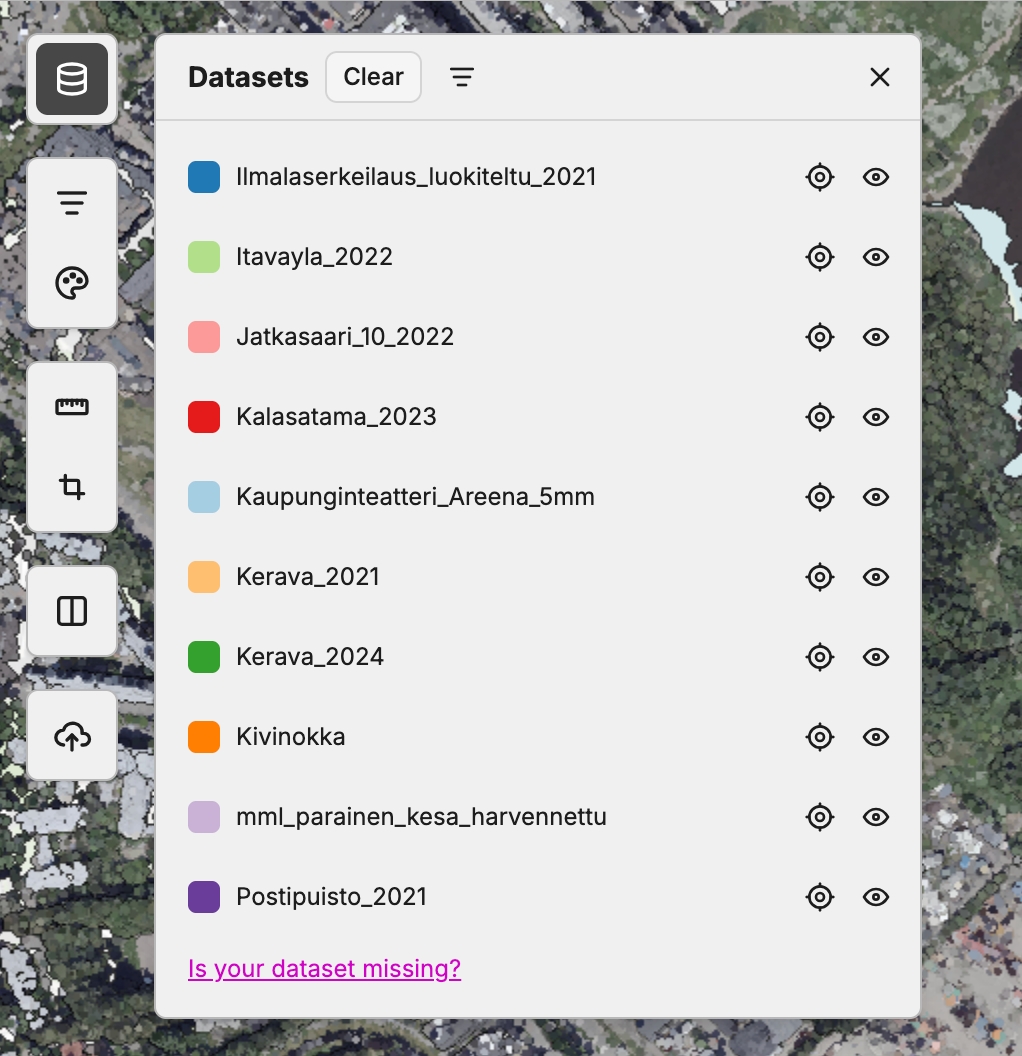

Browse datasets

Click the View datasets icon in the top-left corner to see all datasets in your system. Each row represents a dataset and includes:

1. a color code

2. the dataset name

3. a button to center the view on the dataset

4. a button to hide or show the dataset

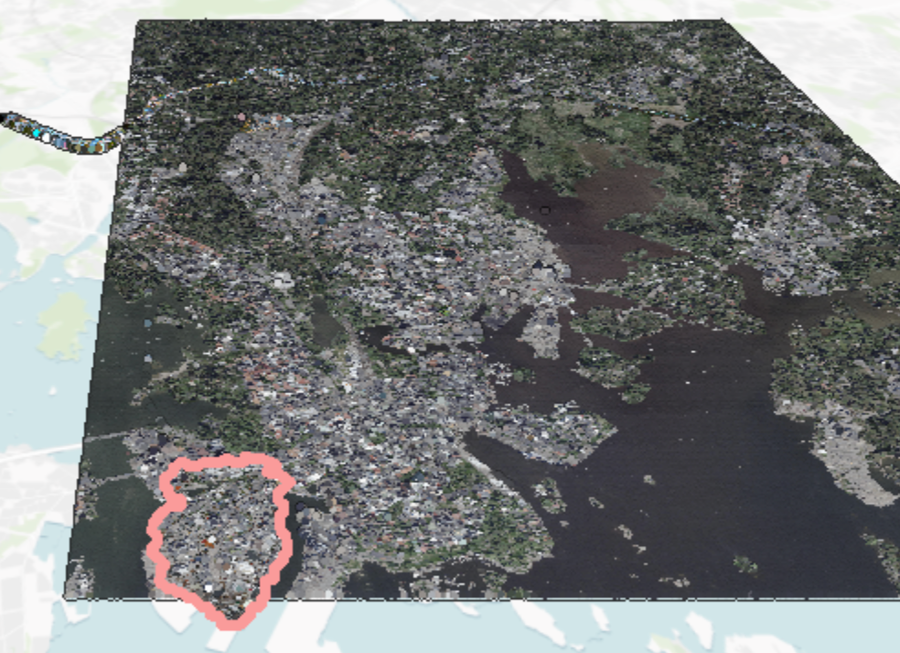

Preview on the map

Hover over a dataset name to see its location on the map.

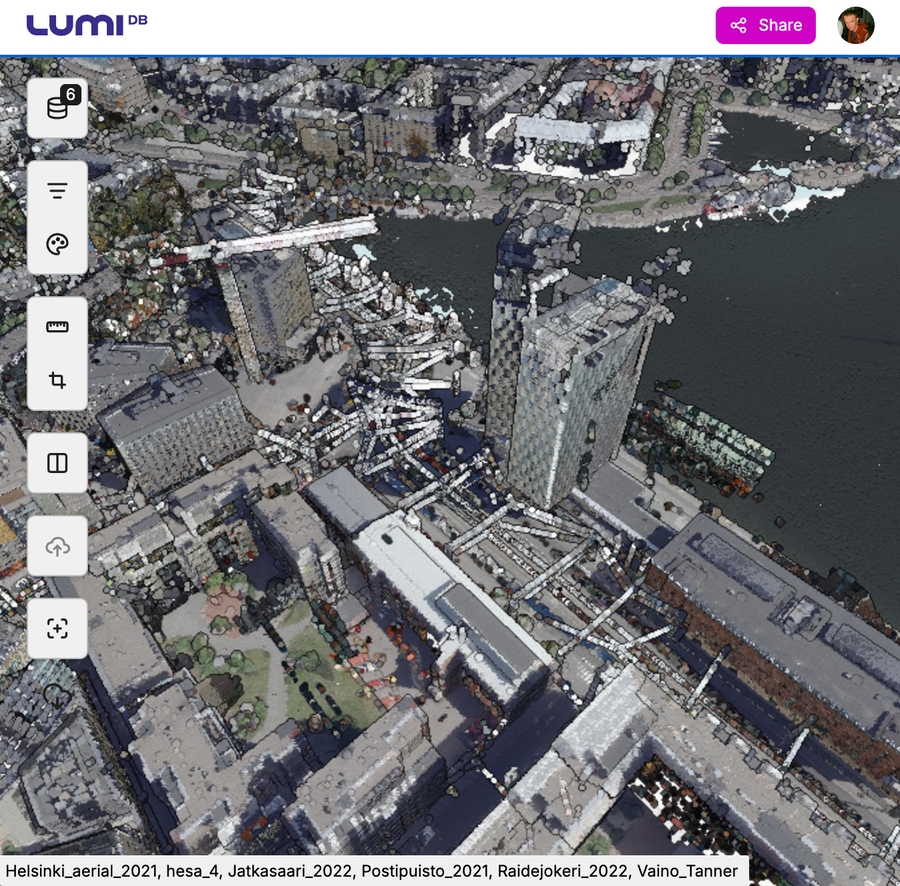

Navigate to an area

Pan and zoom the map with your mouse to reach the area you're interested in.

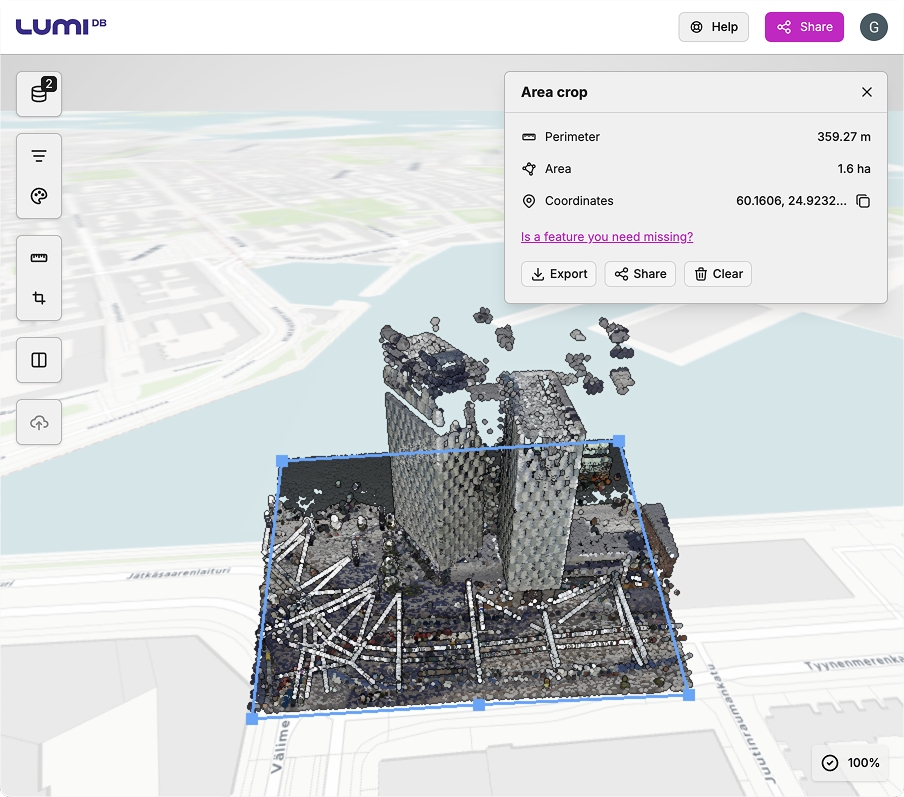

Select an area

Click the Crop tool and draw a polygon on the map. Adjust the corners to refine the selection.

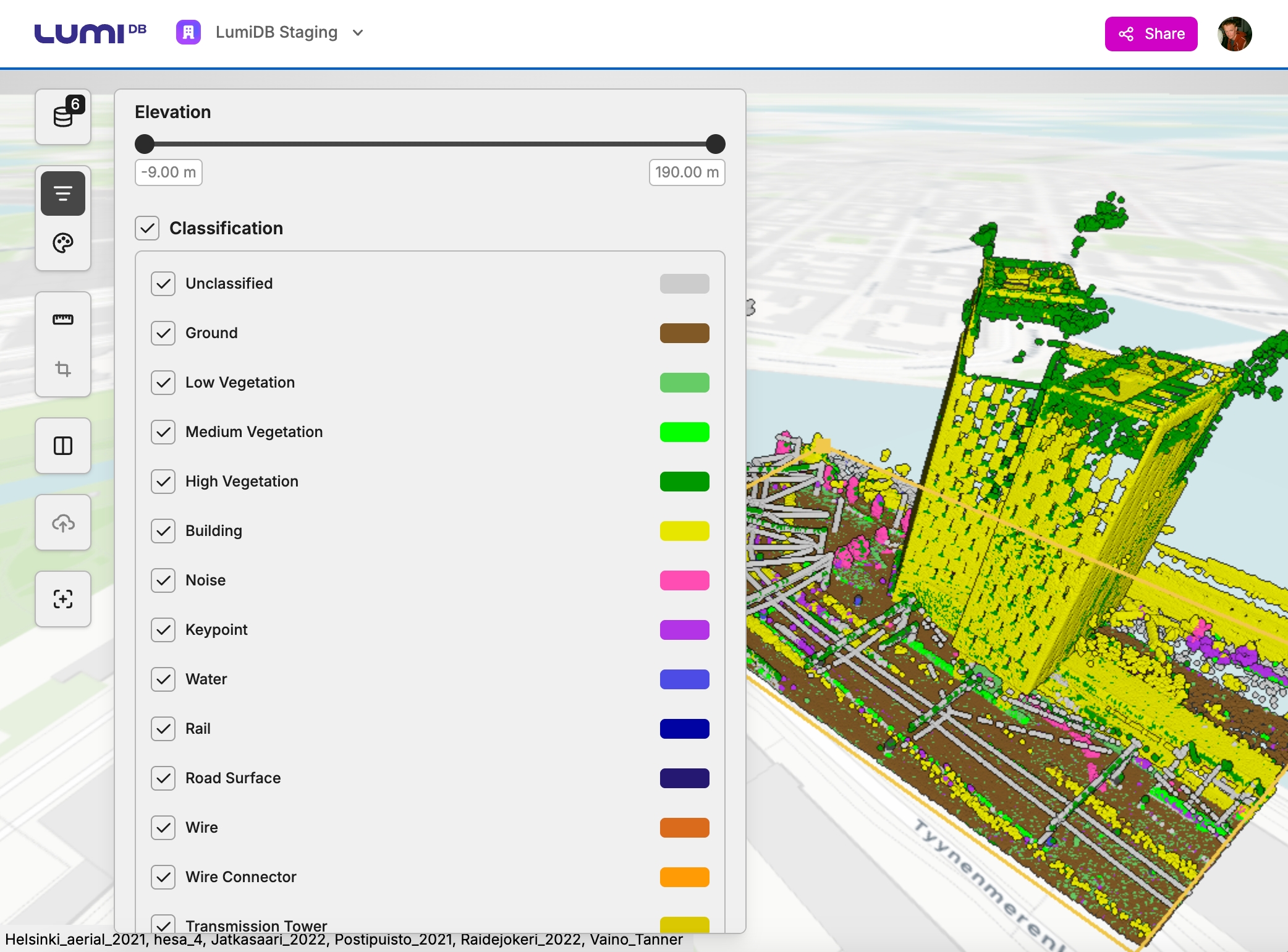

Filter content

Open the Filters menu to hide elements such as buildings or vegetation.

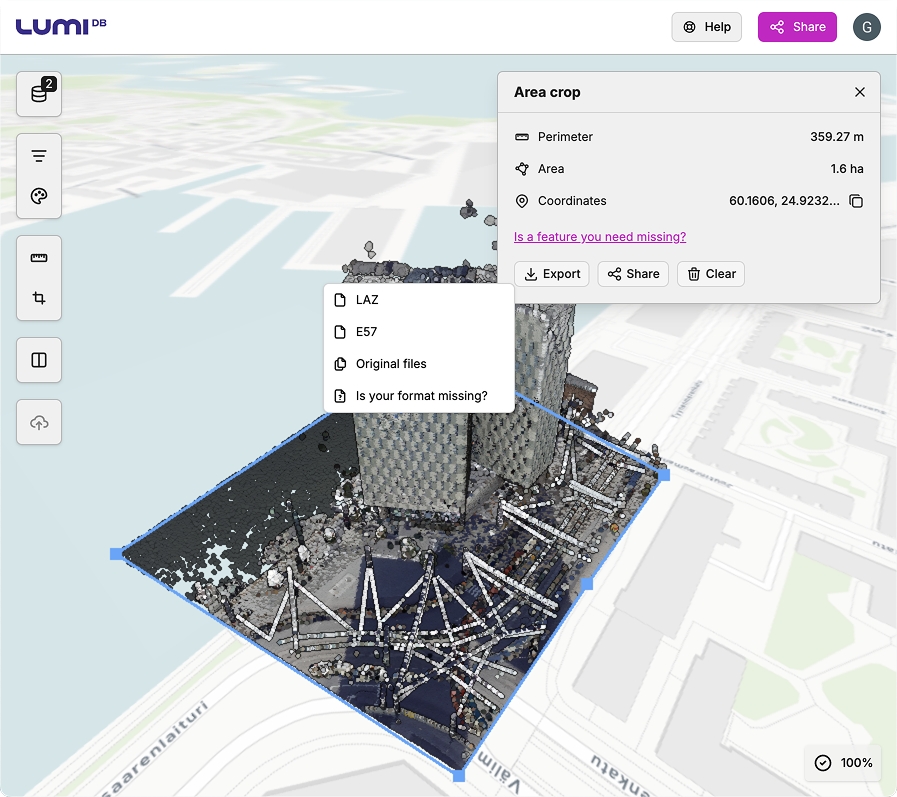

Export to file

Click the Export button. A confirmation appears and the file download starts
